SIDE-SLIDE /MINIATURE SLIDE SWITCHES
290
SWITCHES
MINIATURE SLIDE SWITCHES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
?

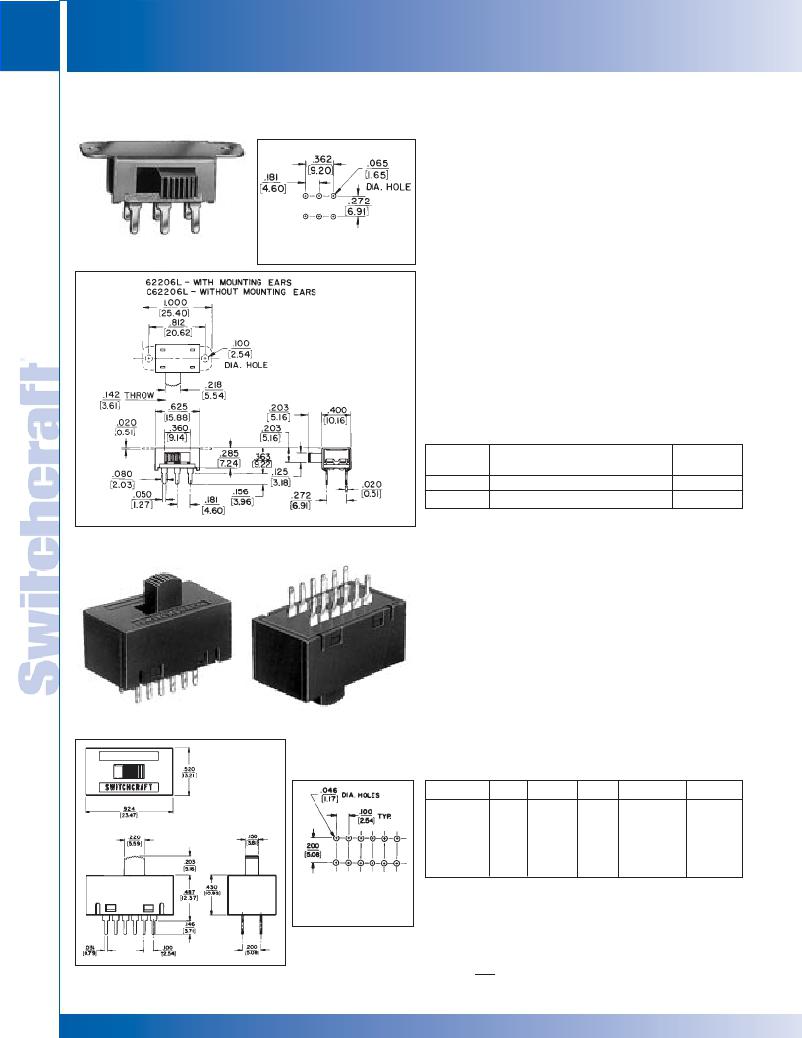

SERIES 62200 - 2 POSITION
2-position locking action with side knob actuator. Side
knob provides low profile, saving space on PC boards.
SPECIFICATIONS
Contact Ratings: 0.5A, 125V AC or DC.
PC Terminals: Copper alloy, silver plated.
62206L
RECOMMENDED PC BOARD
LAYOUT (Component Side)
Housing: Steel, plated.
Knob: Molded thermoplastic.
Terminal Board: Rigid plastic.
Sliders: Copper alloy, plated.
Dielectric Strength: 1000 V rms.
Insulation Resistance: 1 k M ? minimum.
SPECIAL ORDER FEATURES
1. Various knob heights available on special order.
2. Various lengths available on special order.
PART NUMBERS
Part
Number
? 62206L
C62206L
Description
DPDT, with mounting ears, Locking
DPDT, without mounting ears, Locking
Schematic
2-III
2-III
? Special order only; contact Switchcraft.
MINIATURE SLIDE SWITCHES
SERIES C63200 - 2 POSITION, 4 POLE
C63200 switches designed for applications, such as:
instrumentation, test and ground support equipment, computers,
data communications and medical equipment. PC mounting on
standard industry .100" (2.54 mm) x .200" (5.08 mm) centers.
Mounts on PC boards up to .093" (2.36 mm) thick. Molded
black thermoplastic knobs. Terminals are copper alloy, gold-
plated on contact area, tinned on terminal end.
Part Number
Action
Switching Ratings
Schematic
Terminals
C63212L
Locking
4PDT
300mA
max.
30V AC
4-III
Copper alloy,
gold-plated
on contact
area, tinned
on terminal
end
RECOMMENDED
PC BOARD LAYOUT
(Component Side)
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
